I designed the layout using keyboard-layout-editor.com and lasercut each of them to get a feel for the ergonomics of the keyboard before committing to the PCB design.

Version 1

I felt there wasn’t enough stagger on the pinky column and the thumb cluster felt too far away from the rest of the keyboard.

Keyboard prototype version 1 image

Version 2

The pinky felt better now but it could still move down slightly further. The thumb cluster felt better also, but just a bit to low.

Keyboard prototype version 2 image V2 left, V1 right

Version 3

TODO: Make version 3

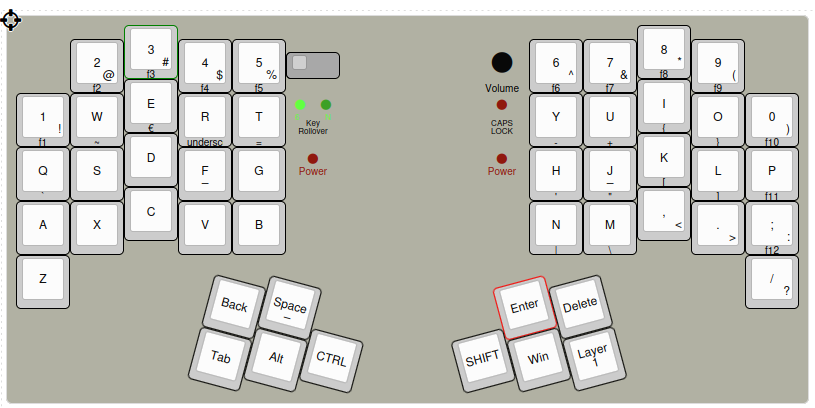

Keyboard prototype version 3 image Current prototype in keyboard layout editor
